When industrial systems demand leak-proof casting, precise flow control, and long service life, the quality of ball valve casting becomes mission-critical. At Invent Cast Pvt. Ltd., we are a specialized ball valve casting manufacturer in India, delivering investment-cast and precision-machined valve components to OEMs, engineering companies, and global exporters across more than 20 countries.
Whether you require cast iron ball valve bodies, cast steel ball valve components, globe valve castings, or complex configurations, our foundry capabilities ensure every part meets your drawing specifications with repeatability, traceability, and zero-compromise quality.
- Serving clients across the globe with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
- Serving clients across the globe with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
- Serving clients across the globe with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
What Is Ball Valve Casting?
Ball valve casting refers to the manufacturing process of producing the metal body and internal components of ball valves using precision casting techniques. A ball valve is a quarter-turn rotational valve that controls the flow of liquids, gases, or slurries through a pipe by using a hollow, perforated ball as the flow control element.
The casting process, particularly investment casting (lost wax casting), allows manufacturers to produce complex valve geometries, thin walls, and tight tolerances that are difficult to achieve through forging or machining alone. The result is a high-strength, dimensionally accurate, and corrosion-resistant component ready for assembly and deployment in critical industrial environments.
At Invent Cast, ball valve castings are produced across a range of alloy grades, including stainless steel, duplex steel, carbon steel, and cast iron, serving everything from simple isolation valves to high-pressure, high-temperature industrial control valves.
Types of Valve Castings We Manufacture
As leading casting manufacturers in India, we produce a complete range of valve castings covering multiple valve types used across fluid control and industrial applications:

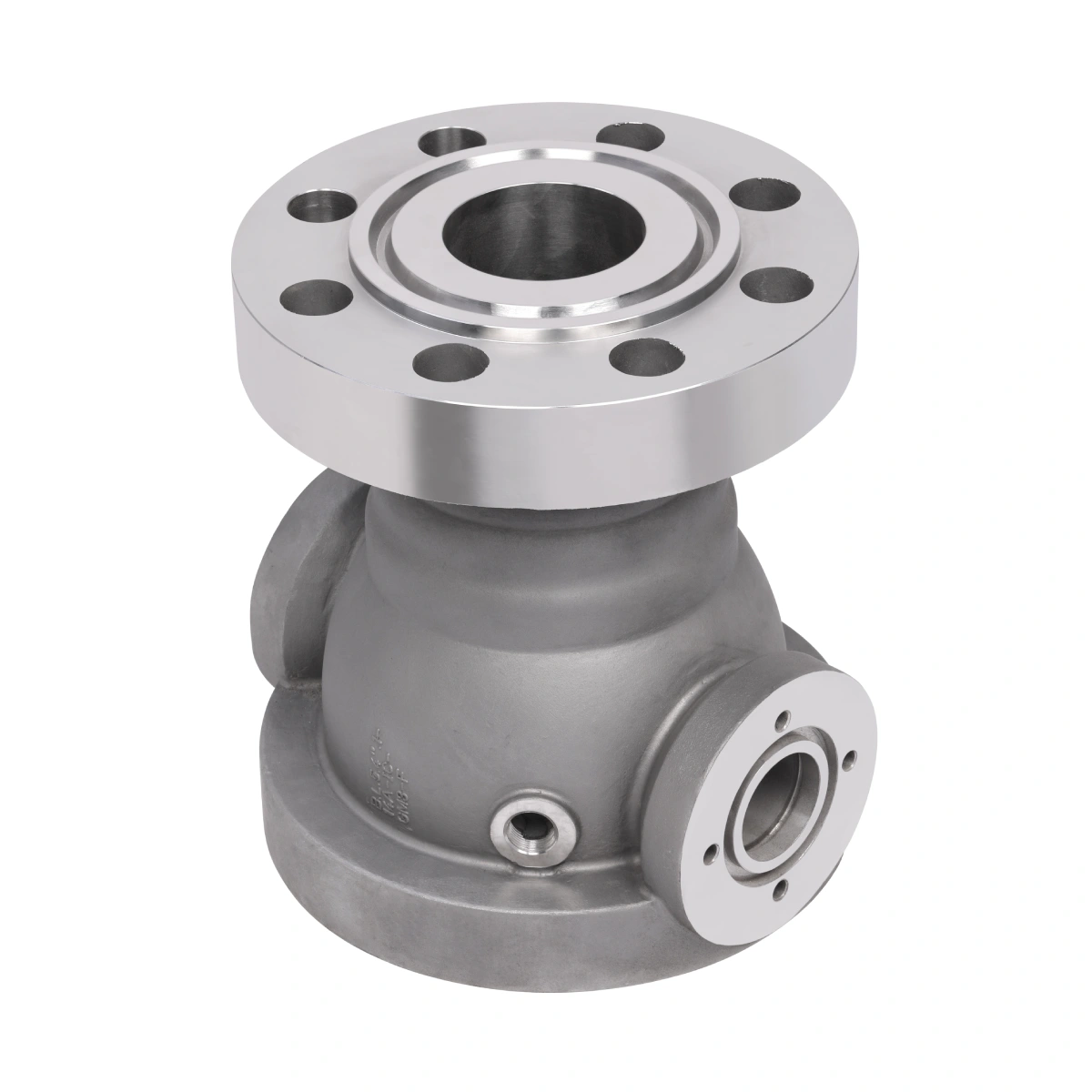

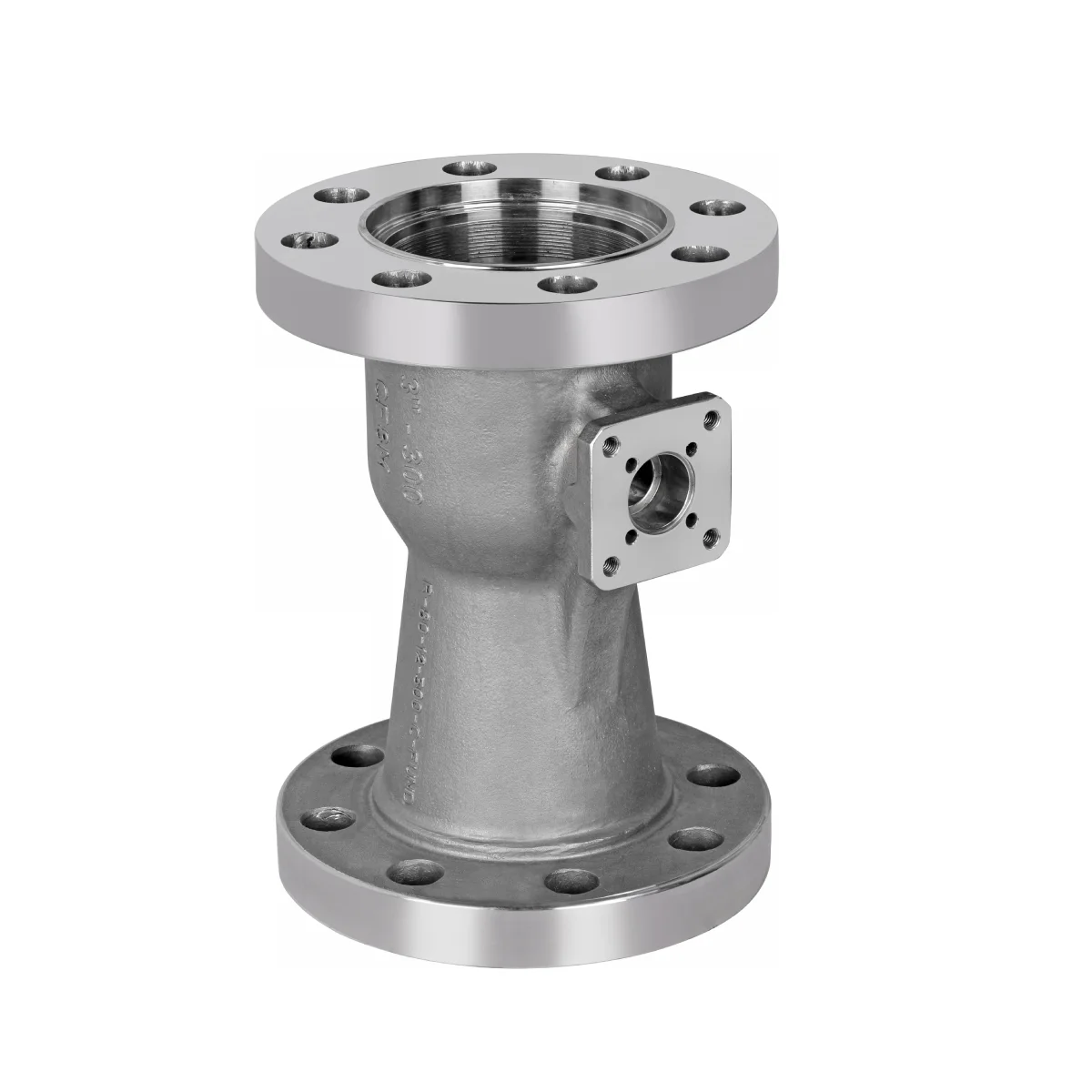

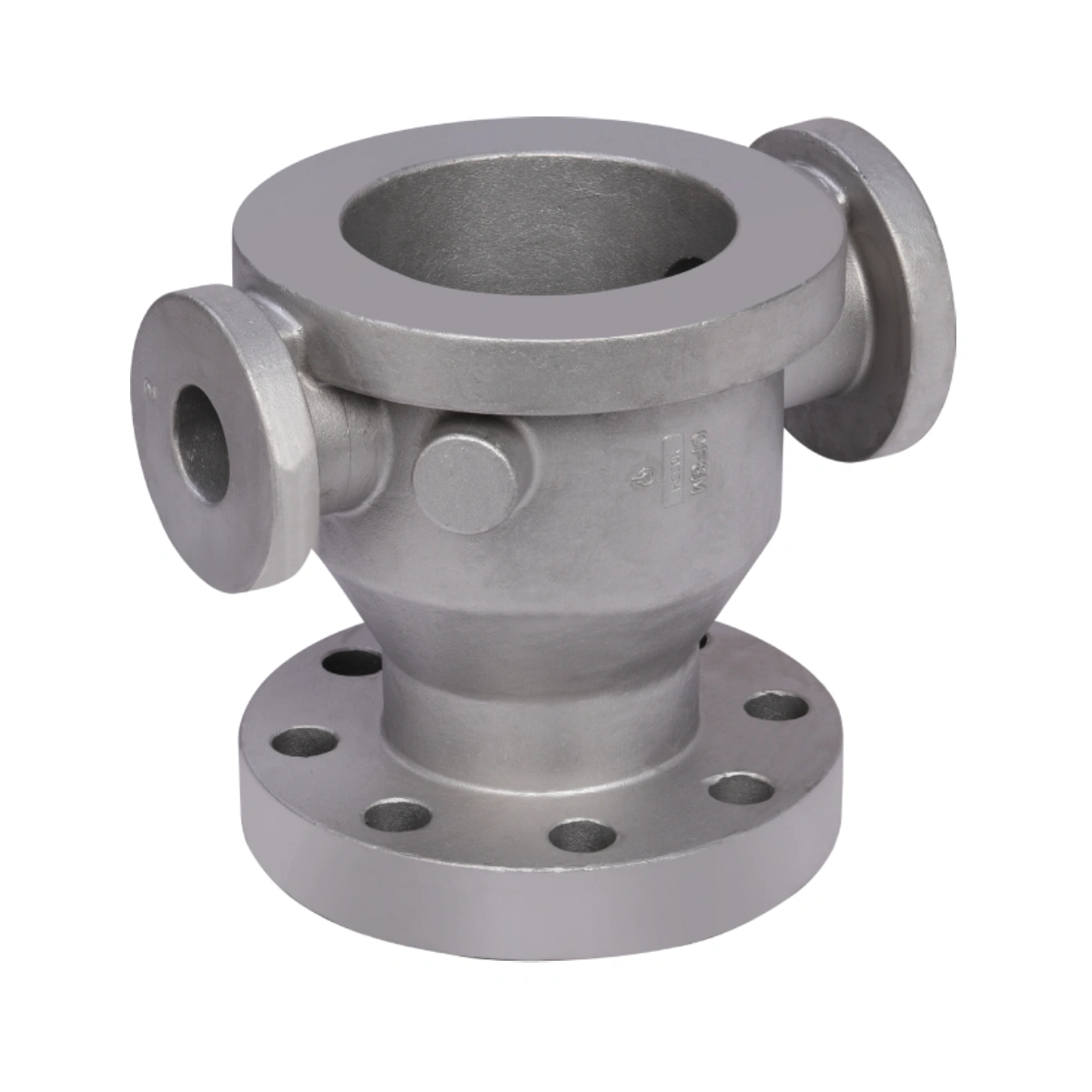

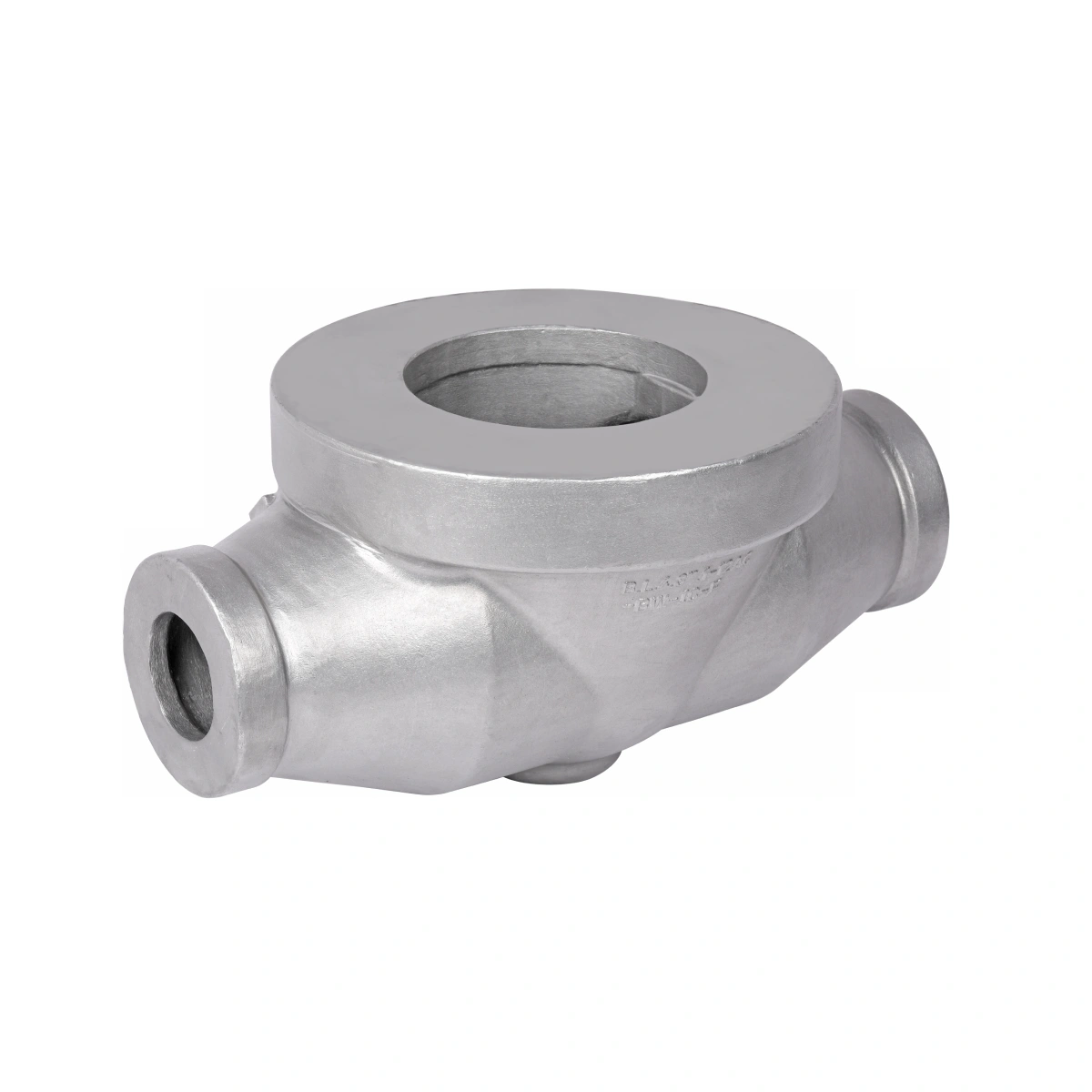

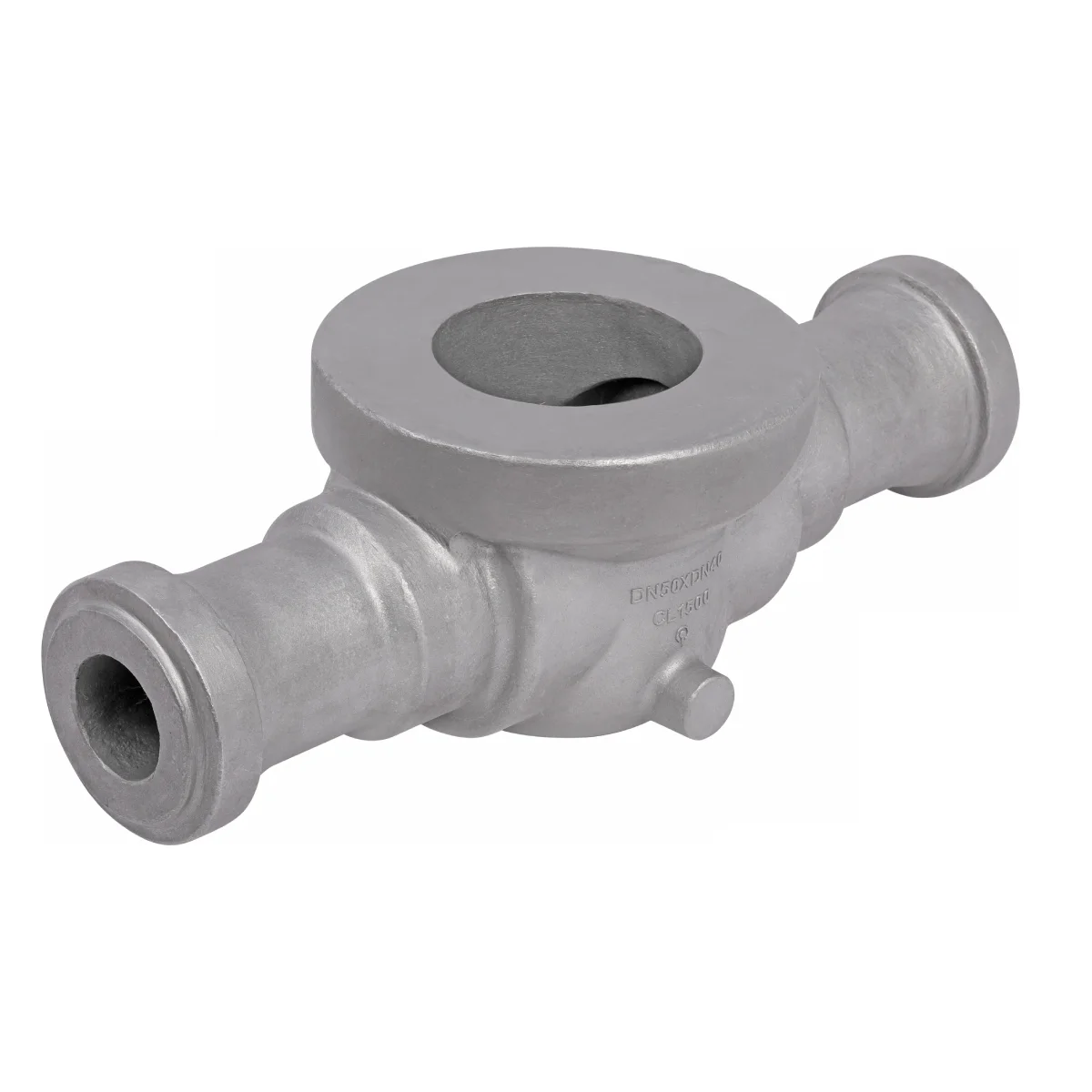

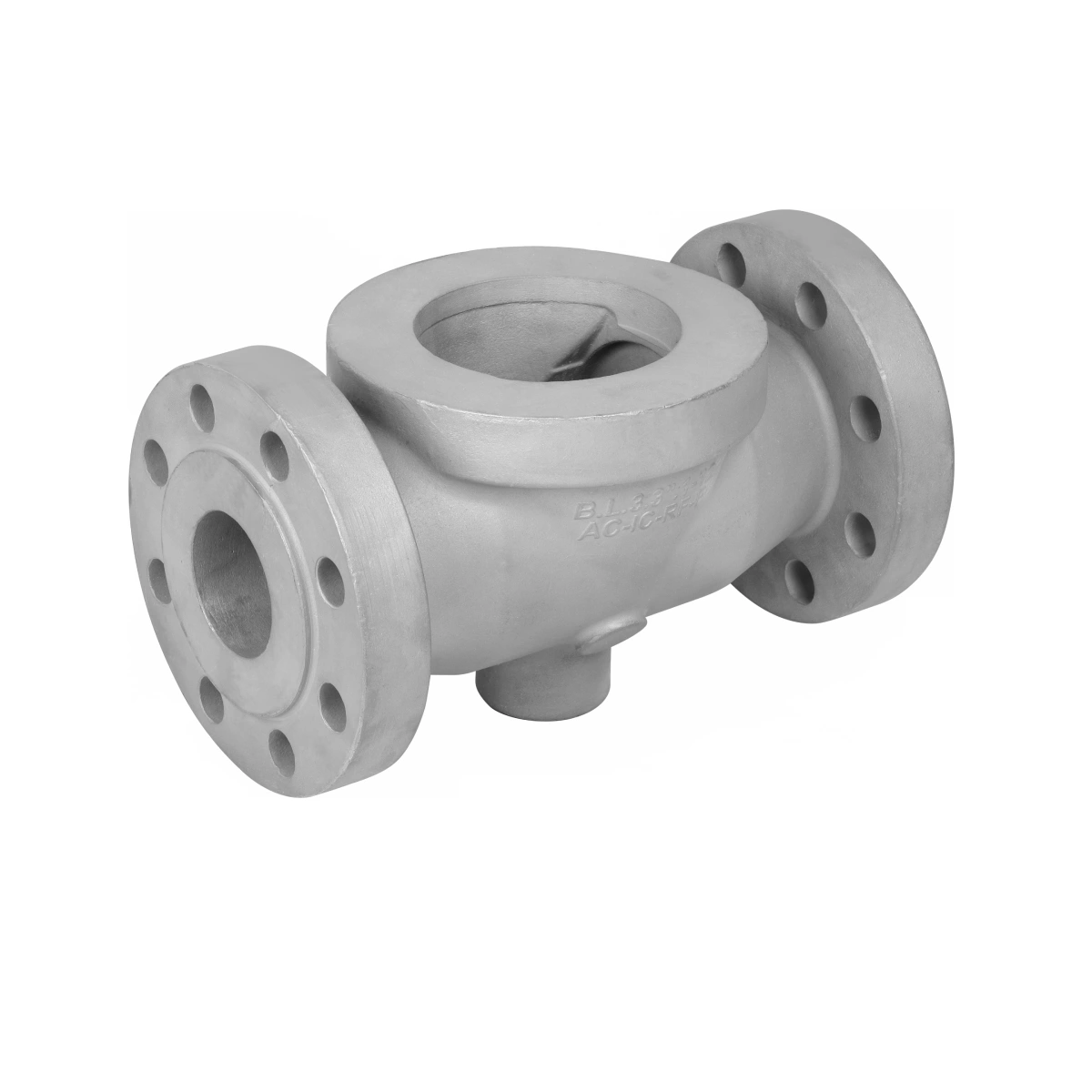

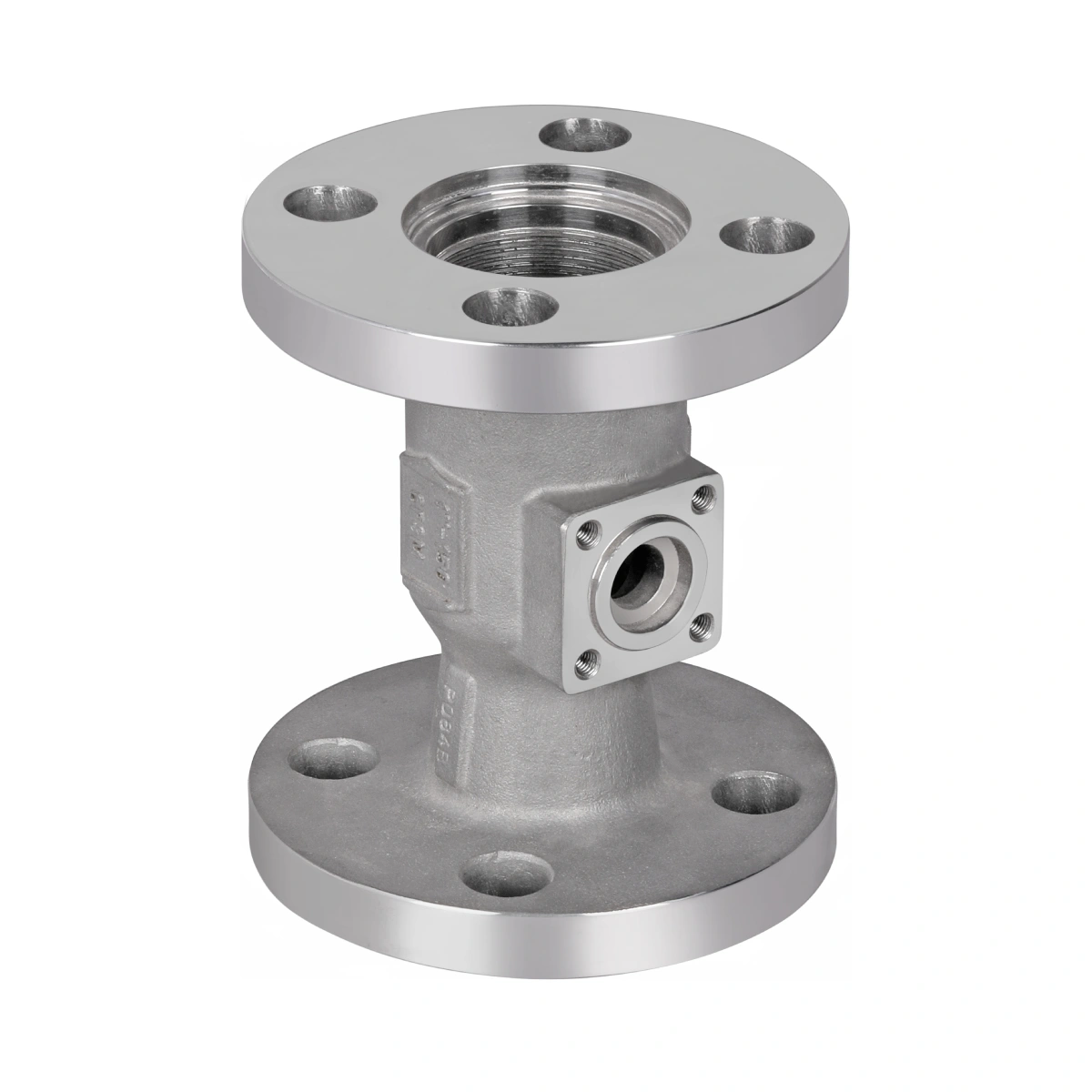

1. Ball Valve Casting
Our core specialty. We manufacture precision investment cast ball valve bodies, end caps, seats, and stems in various end connections flanged, threaded, socket-weld, and butt-weld. Available in two-piece, three-piece, top-entry, and trunnion-mounted configurations.
2. Cast Iron Ball Valve Bodies
Cast iron ball valve components offer an excellent cost-to-performance ratio for low to medium pressure water, gas, and oil distribution systems. Invent Cast produces grey cast iron (GG-25) and ductile iron (GGG-40, GGG-50) ball valve castings with excellent machinability and surface finish.
3. Cast Steel Ball Valve Components
For demanding high-pressure and high-temperature applications in oil & gas, petrochemical, and power generation industries, cast steel ball valve bodies provide superior mechanical strength and impact resistance. We supply WCB, WCC, WC6, CF8, CF8M, and other ASTM-grade steel castings per customer specifications.
4. Globe Valve Casting
Globe valve castings are used extensively for throttling and flow regulation. The complex internal geometry of globe valves makes investment casting the ideal process — delivering smooth flow passages, tight port dimensions, and excellent surface finish with minimal post-machining.
5. Check Valve Castings
Check valves prevent backflow in piping systems. Our check valve castings — swing type, lift type, and dual plate — are produced with precise seating surfaces and accurate internal profiles that ensure reliable one-directional flow and long-term sealing performance.
6. Pressure Regulating Valve Castings
Pressure regulating valve bodies demand complex internal geometries and dimensional accuracy to maintain set-point pressure delivery. Our investment casting process handles these geometries with precision, making Invent Cast a preferred supplier for pressure control valve OEMs.
7. Solenoid Valve Body Castings
Solenoid valve bodies used in automation, HVAC, and fluid control systems require compact, high-accuracy castings with smooth internal passages. Our precision casting capabilities support small-to-medium size solenoid valve bodies in stainless steel, brass-compatible alloys, and carbon steel.
Why Investment Casting for Ball Valve Components?
Among all valve types and manufacturing methods available, investment casting ball valve production offers unmatched advantages for industrial applications:
- Complex Internal Geometries: Investment casting accurately reproduces internal flow paths, ports, and seat profiles without additional machining.
- Near-Net-Shape Output: Reduces raw material consumption and post-processing time.
- Consistent Dimensional Accuracy: Casting tolerances of CT4–CT6 ensure repeatable quality across high-volume orders.
- Wide Material Range: From cast iron and carbon steel to stainless steel, duplex, and super duplex all achievable.
- Superior Surface Finish: Smooth internal and external surfaces reduce flow turbulence and improve sealing performance.
- Design Flexibility: Handles thin walls, undercuts, and integrated features that would require multiple machined parts otherwise.
- Cost Efficiency at Scale: Significantly lower per-unit cost for medium-to-high volume production runs.
These advantages make investment casting ball valve components the first choice for demanding applications in oil & gas, chemical processing, water treatment, food processing, pharmaceuticals, and power generation.
Our Ball Valve Casting Manufacturing Process
At Invent Cast, every casting ball valve component passes through a rigorously controlled, multi-stage manufacturing process designed to guarantee zero-defect output:
Wax Pattern Creation
Precision wax patterns are produced using high-accuracy dies matching your valve drawing.
Tree Assembly
Wax patterns are assembled into clusters (trees) for efficient ceramic shell building.
Ceramic Shell Investment
Multiple layers of ceramic slurry are applied and dried to form a high-strength refractory shell.
Robotic Shelling
Invent Cast uses advanced robotic shelling technology to ensure uniform shell thickness and eliminate human variation a key differentiator in our quality system.
Dewaxing & Firing
Steam autoclave dewaxing followed by high-temperature shell firing prepares the mold.
Metal Pouring
Precise metallurgical control during casting ensures correct alloy composition and temperature.
Shell Removal & Cutoff
Castings are separated from the tree and cleaned by shot blasting.
Heat Treatment
Normalizing, annealing, or solution annealing applied per material and customer requirements.
CNC Precision Machining
All critical dimensions seat bores, flange faces, port diameters are finish-machined to tight tolerances.
Surface Treatment
Passivation, electropolishing, painting, or coating as required.
Final Inspection & Dispatch
Full dimensional report, material certificate (MTC), and packaging per export standards.
Quality Assurance & Testing
Every ball valve casting leaving our foundry is validated against international quality standards. Our testing and inspection protocols ensure dimensional integrity, metallurgical quality, and pressure-holding performance:
- Hydrostatic Pressure Testing: Shell and seat tested at 1.5× rated pressure per API 598 / BS EN 12266
- Air Leak Test: Low-pressure pneumatic test for seat and body seal integrity
- Dye Penetrant Inspection (DPI): Surface crack and porosity detection on critical areas
- Radiographic Testing (RT): Internal defect inspection for high-pressure casting classes
- Ultrasonic Testing (UT): Wall thickness and sub-surface flaw detection
- Dimensional Inspection: CMM and gauge inspection with full dimensional reports
- Chemical Analysis (PMI): Positive Material Identification confirms alloy compliance
- Mechanical Testing: Tensile, hardness, and impact (Charpy) testing per heat
Industries We Serve with Ball Valve Castings
As experienced casting manufacturers, our ball valve components are trusted by OEMs and industrial buyers across a wide range of industries:
Oil & Gas
High-pressure trunnion ball valves, piggable valves, subsea valve bodies
Petrochemical & Refinery
Corrosion-resistant CF8M and duplex steel valve castings
Water & Wastewater Treatment
Cast iron ball valve bodies for large-bore isolation duty
Power Generation
Alloy steel globe valve and ball valve castings for steam systems
Pharmaceuticals & Food Processing
Hygienic SS316L investment casting ball valve parts
HVAC & Building Services
- Cast iron and ductile iron valve bodies for heating/cooling systems
Chemical Processing
Exotic alloy valve castings for aggressive chemical environments
Marine & Offshore
Super duplex and Monel valve castings for seawater service
Why Choose Invent Cast as Your Ball Valve Casting Manufacturer?
There are many casting manufacturers in India, but Invent Cast stands apart through a combination of technical depth, process discipline, and long-term reliability:
- Drawing-Based Manufacturing: Every casting is produced strictly to your technical drawings and specifications, no deviation, no shortcuts.
- Robotic Shelling Technology: Automated shell building eliminates inconsistencies in ceramic investment, ensuring uniform casting quality across batches.
- Integrated Machining: In-house CNC machining capability means you receive a fully machined, ready-to-assemble component, saving you procurement complexity.
- Scalable Production: Capacity to handle prototype quantities through to annual production volumes in thousands of pieces per part number.
- Export-Ready Processes: Full documentation, packaging, and compliance support for buyers in the USA, Europe, UK, Middle East, and Southeast Asia.
- Long-Term OEM Partnerships: We work as your extended manufacturing arm with stable pricing, release-based scheduling, and dedicated account management.
- Transparent Quality Reporting: Full inspection records, heat traceability, and test certificates supplied with every shipment.
- Serving clients across the globe with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
- Serving clients across the globe with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
- Serving clients across the globe with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
Frequently Asked Question
What is the difference between cast iron ball valve and cast steel ball valve?
Cast iron ball valves are suitable for low-to-medium pressure applications in water, gas, and non-aggressive media due to their cost-effectiveness and good machinability. Cast steel ball valves (WCB, CF8M, etc.) are used in high-pressure, high-temperature, and corrosive environments in oil & gas, refinery, and chemical industries, offering superior tensile strength and impact resistance.
What valve types can Invent Cast manufacture?
We manufacture casting components for multiple valve types including ball valves, globe valves, check valves, gate valves, butterfly valves, pressure regulating valves, solenoid valve bodies, and strainer bodies. Each is produced per customer drawings in the required alloy grade.
Do you supply investment casting ball valve components for export?
Yes. Invent Cast has an active export network covering 20+ countries. We supply investment casting ball valve components with full documentation, MTC, COO, and inspection reports suitable for buyers in the USA, Germany, UK, Australia, UAE, and other global markets.
What is the minimum order quantity for ball valve castings?
We accommodate both small batch prototype orders and large volume production runs. Minimum order quantities depend on the part complexity and material. Contact our team for a specific quote based on your drawings and annual requirements.
Can you machine the ball valve castings after casting?
Yes. Our integrated CNC machining facility handles all critical dimensions including seat bores, flange faces, threaded connections, and port diameters. We can supply castings in raw, semi-machined, or fully machined condition as required.
