High-Precision Butterfly Valve Castings Built to Perform
At Invent Cast, we specialize in manufacturing precision investment-cast butterfly valve components engineered to global performance and safety standards. Built for lightweight strength, sealing accuracy, and smooth flow regulation our castings ensure dependable performance in industries where efficiency and reliability are critical.
- Serving clients across the globe with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
- Serving clients across the globe with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
- Serving clients across the globe with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
What Is Butterfly Valve Casting?
Butterfly valve casting is the manufacturing process of producing the metal body, disc, stem, and end connection components of butterfly valves using precision casting techniques primarily investment casting and sand casting depending on size and complexity. A butterfly valve is a quarter-turn rotary valve that regulates or isolates flow using a disc mounted on a rotating shaft. When the shaft turns, the disc either opens perpendicular to flow or closes parallel to the pipe bore, making the butterfly valve one of the most compact and cost-effective flow control solutions available.

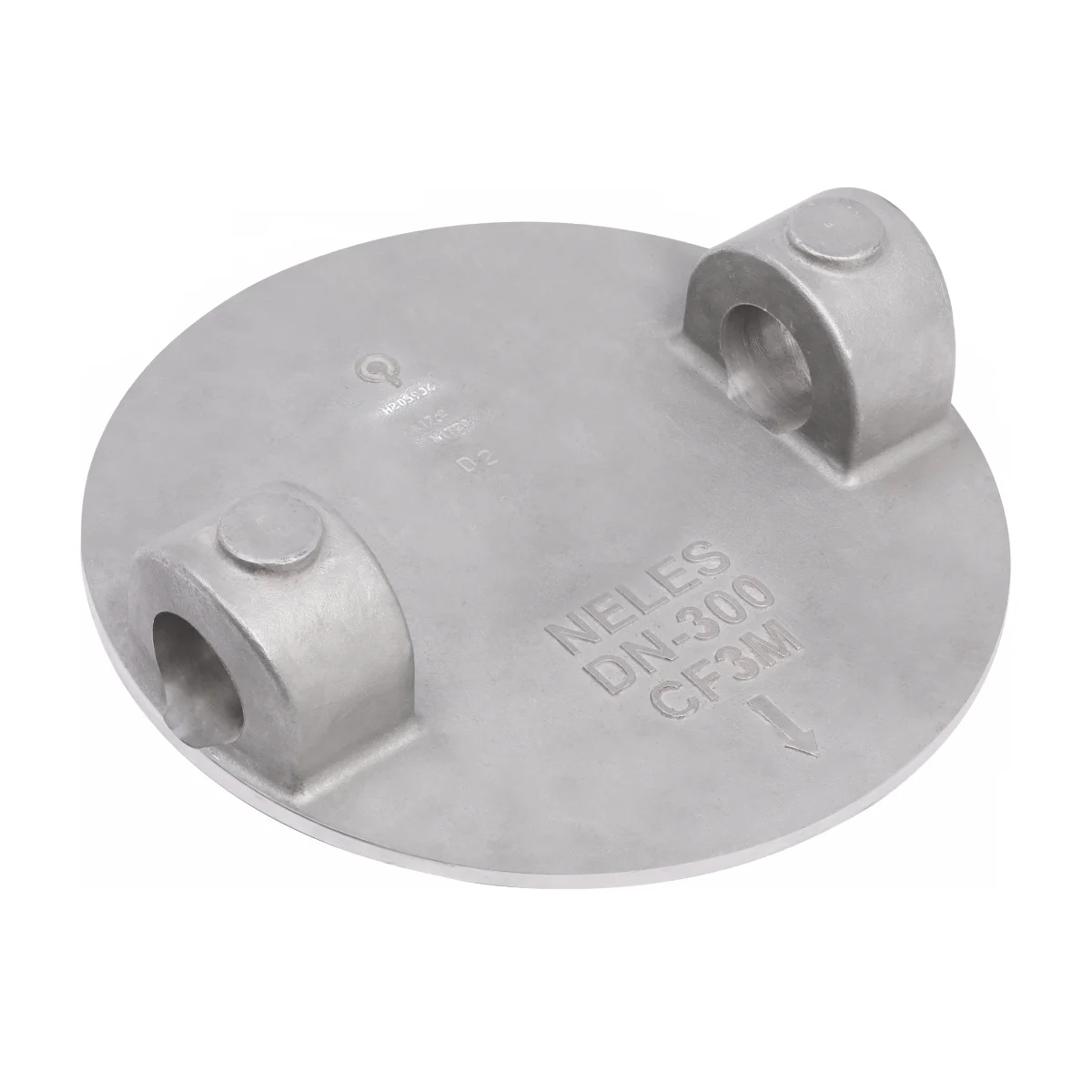

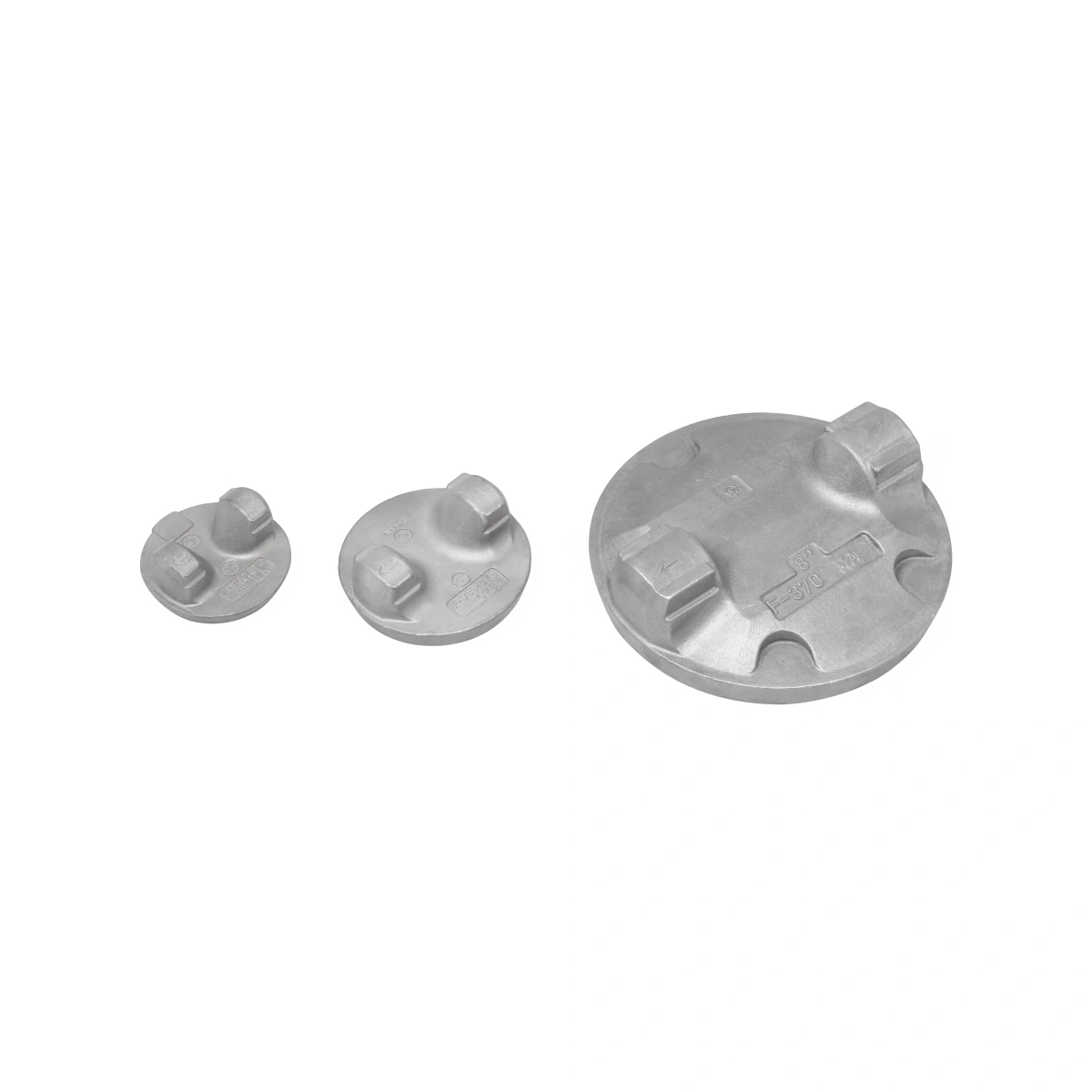

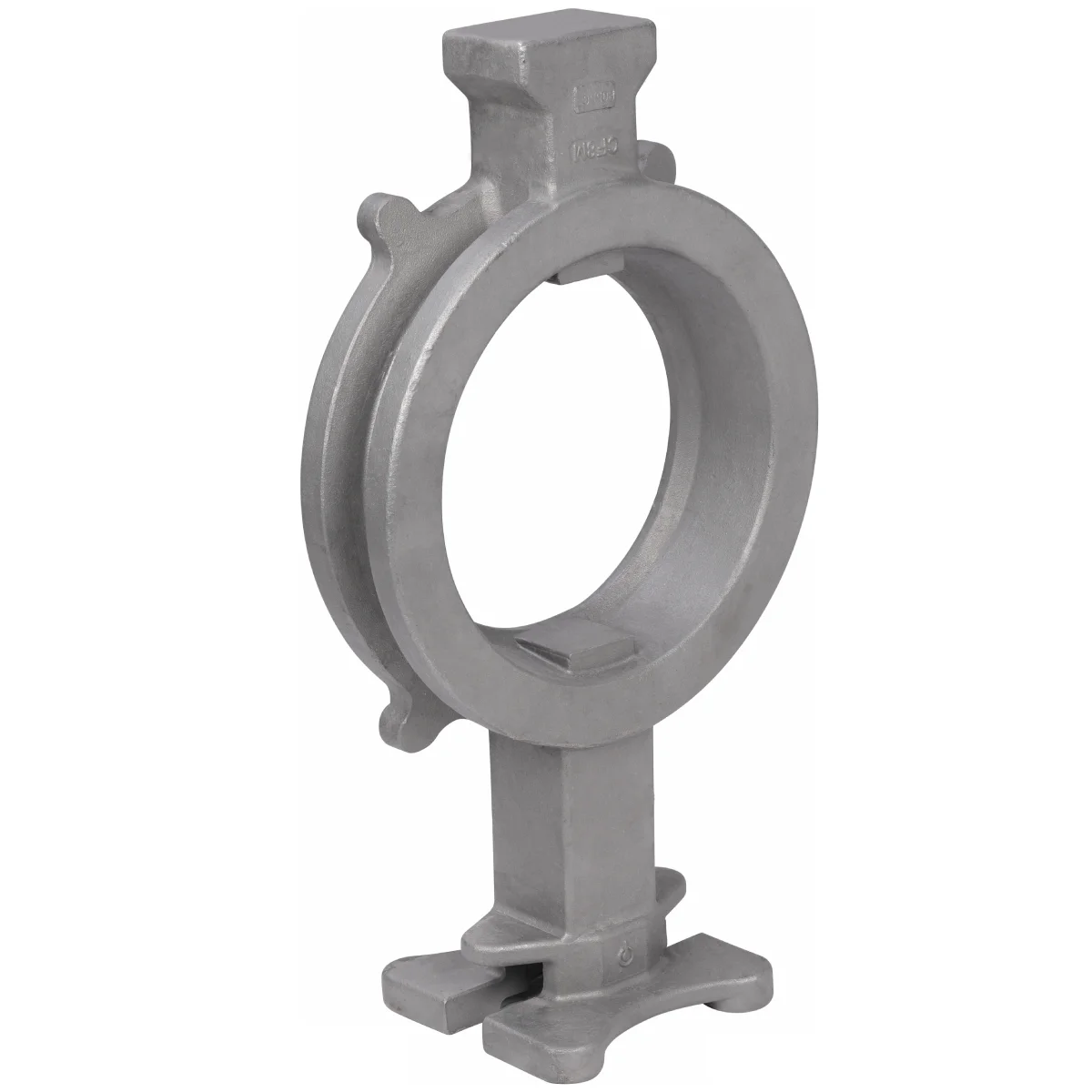

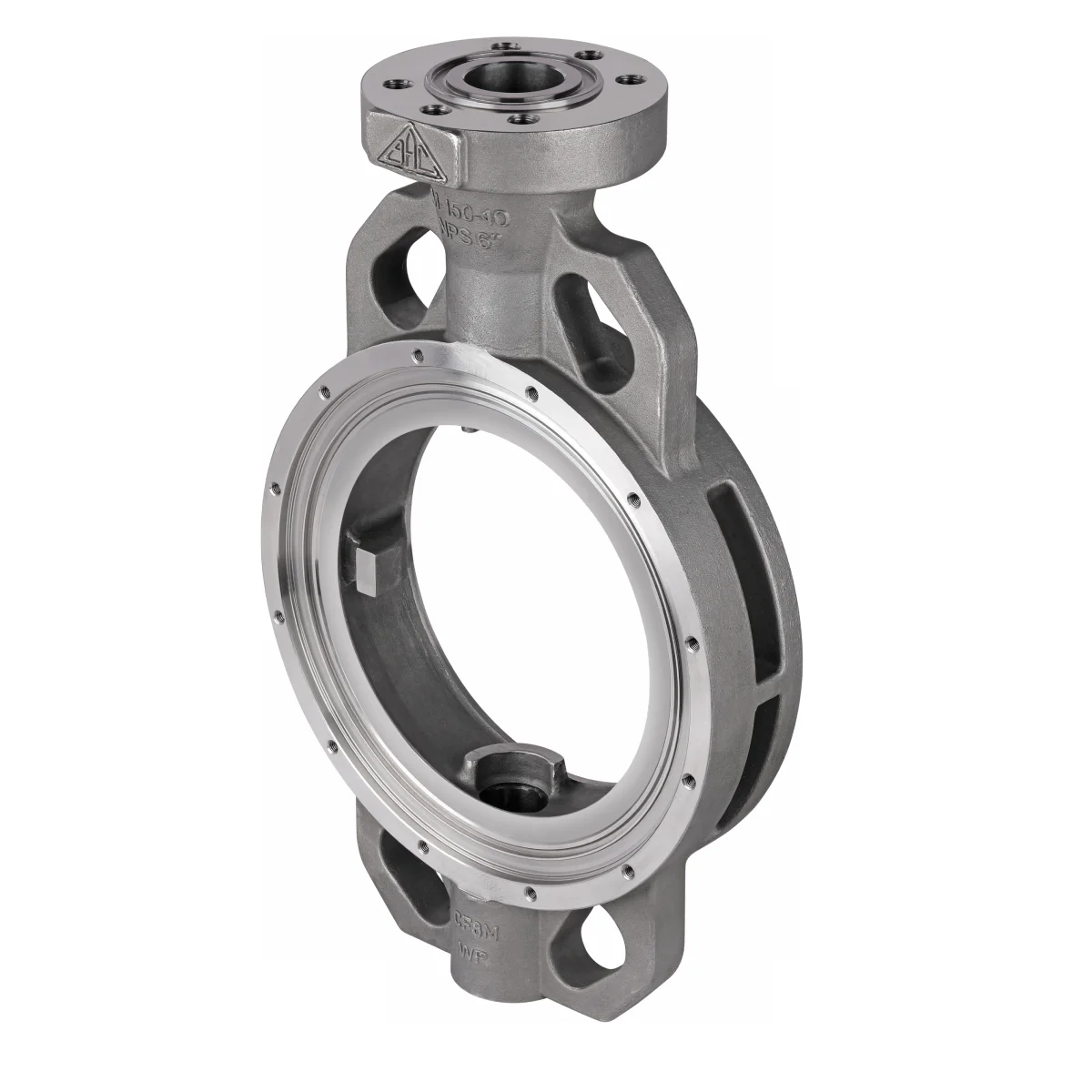

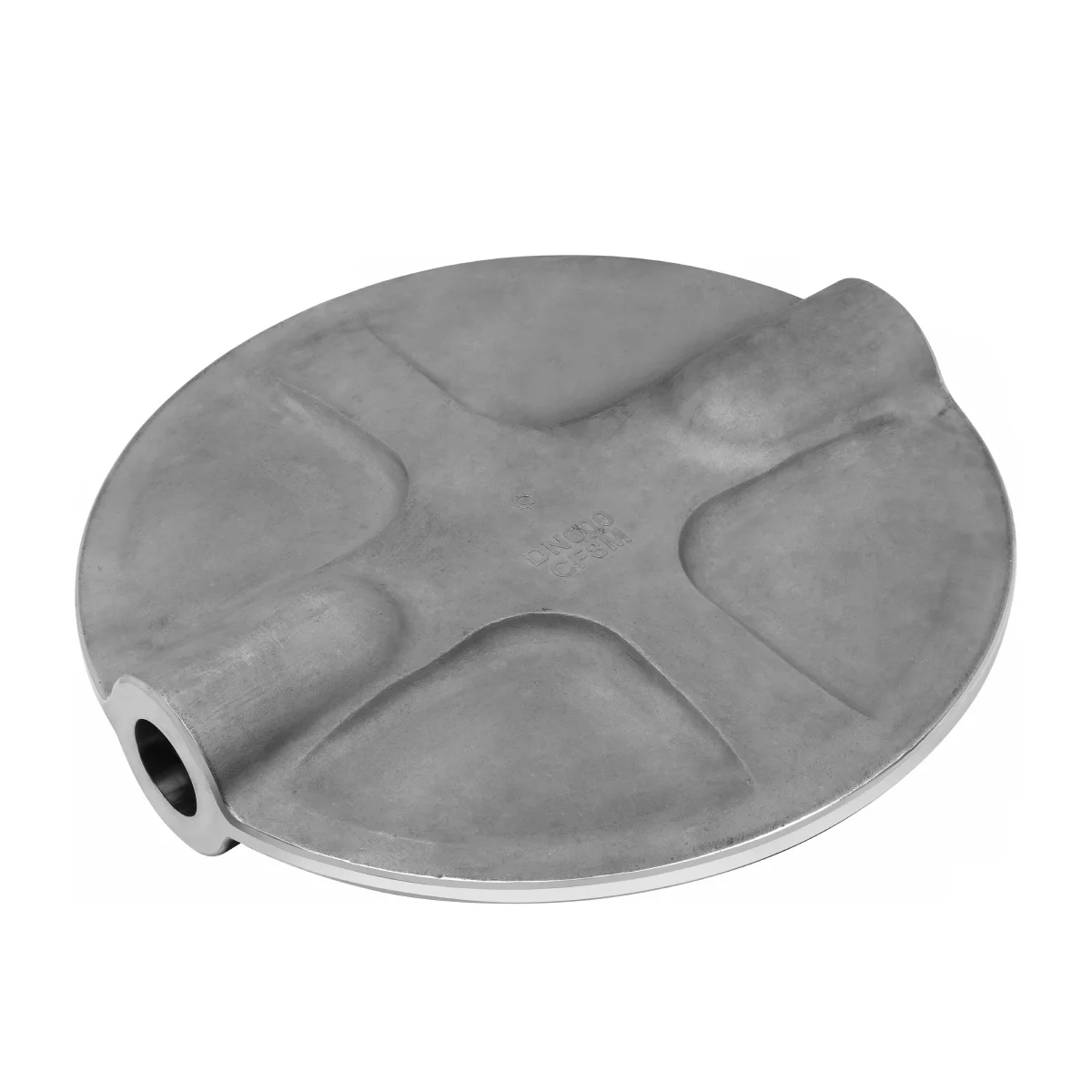

The term butterfly valve casting covers everything from the outer body housing that interfaces with the pipeline to the internal disc that provides the sealing function. Both components demand casting precision: the body bore must be circular and dimensionally accurate to ensure the elastomeric or metallic seat seals correctly, and the disc must be cast with a smooth aerodynamic profile, correct shaft bore alignment, and uniform wall thickness to minimise operating torque and ensure consistent sealing.
At Invent Cast, butterfly valve casting manufacturing is carried out across the full spectrum of alloy grades including cast iron butterfly valve bodies, ductile iron butterfly valve housings, cast steel butterfly valve components, stainless steel discs, and duplex steel end connections serving butterfly valve manufacturers, OEMs, and global exporters across more than 20 countries.
Why Investment Casting for Butterfly Valve Components?
Among all butterfly valve casting manufacturing routes sand casting, die casting, and machining from bar investment casting delivers the best combination of dimensional accuracy, surface quality, and design freedom for butterfly valve discs, bodies, and internal components:
- Precise Bore Roundness: Investment casting maintains tight circularity on the body bore and disc profile directly affecting seat compression uniformity and torque consistency.
- Complex Disc Profiles: The aerodynamic lenticular disc profile of a butterfly valve is difficult to achieve with consistent surface finish by any other process. Investment casting reproduces it accurately in every piece.
- Near-Net-Shape Output: Reduces raw material waste and minimises machining allowance, lowering per-unit cost for medium-to-high volume butterfly valve casting production.
- Wide Material Range: From cast iron butterfly valve bodies for utility service to SS316 discs for pharmaceutical lines and super duplex bodies for offshore applications — all achievable from the same foundry.
- Superior Surface Finish: Smooth internal and external surfaces reduce flow turbulence and improve sealing performance.
- Consistent Dimensional Tolerances: CT4–CT6 casting tolerances ensure batch-to-batch repeatability across production runs — critical for butterfly valve assemblies where disc-to-seat fit determines sealing performance.
- Integrated Features: Seat pockets, stem bore holes, lug bosses, and flange faces can be incorporated into the casting, reducing secondary machining operations.
These advantages make investment casting the preferred route for butterfly valve casting manufacturers producing high-performance and high-volume valve components for global markets.
| Butterfly Valve Casting Technical Data | |
|---|---|
| R&D | |
| Lead Time for Development & Samples: 25 to 40 days | |
| Molten Metal | Stainless Steel: CF8, CF8M, Duplex, Super Duplex |
| Carbon Steel: WCB, LCB | |
| Alloys: Aluminium Alloy, Bronze, Nickel-base Alloy, Copper Alloy | |
| Metal Standard | ASTM, ASME, API, DIN, EN, BS, JIS |
| Material for Shell Building | Silica Sol (Precipitated Silica) |
| Water Glass (Sodium Silicate) | |
| Mixtures of Silica Sol and Water Glass | |
| Technical Parameter | Piece Weight: 500 g to 200 kg |
| Max Dimension: 1,200 mm for Diameter or Length | |
| Min Wall Thickness: 3 mm (depending on pressure class) | |
| Casting Roughness: Ra 3.2–6.3, Machining Roughness: Ra 1.6 | |
| Tolerance of Casting: ISO 8062 CT6–CT8 | |
| Tolerance of Machining: ISO 2768-mk / IT6 | |
| Inner Core: Ceramic Core, Urea Core, Water Soluble Wax Core | |
| Heat Treatment | Normalizing, Quenching & Tempering, Solution Annealing, Stress Relieving |
| Surface Treatment | Polishing, Sand / Shot Blasting, Electropolishing, Pickling & Passivation, Epoxy Coating, Anodizing |
| Dimension Testing | CMM, Vernier Caliper, Depth Gauge, Height Gauge, Go/No-Go Gauge, Special Fixtures |
| Chemical Inspection | Chemical Composition Analysis (20 elements), X-ray Radiographic Inspection, Cleanliness Inspection, Carbon-Sulfur Analysis |
| Physical Inspection | Mechanical Properties (Hardness, Yield Strength, Tensile Strength, Elongation), Dynamic & Static Balancing |
| Testing & Compliance | Hydrostatic Testing, Air Tightness, Set Pressure Verification, API/ISO Compliance |
| Production Capacity | Up to 150 tons/month, over 1,800 tons annually |
Industries We Serve with Butterfly Valve Castings
As an experienced butterfly valve casting supplier, our precision-cast components are trusted by butterfly valve manufacturers, OEMs, and industrial buyers across a wide range of industries:
Oil & Gas
Cast steel butterfly valve bodies in WCB, WC6, and duplex steel for pipeline isolation and process plant service with full radiographic inspection and NACE MR0175 compliance options.
Petrochemical & Refinery
Cast iron butterfly valve bodies for chilled water, heating, and condenser circuits. The cast iron wafer butterfly valve format dominates this segment for its compact face-to-face dimension and low installed cost.
Water & Wastewater Treatment
CF8M stainless steel and duplex steel butterfly valve casting bodies and discs for aggressive chemical service where cast iron’s corrosion resistance is insufficient.
Power Generation
Alloy steel and stainless steel butterfly valve castings for cooling water circuits, condensate systems, and auxiliary service lines at thermal and nuclear power stations.
Pharmaceuticals & Food Processing
Hygienic SS316L butterfly valve discs and bodies with electropolished surfaces for CIP/SIP-compatible process lines in food, dairy, and pharmaceutical manufacturing.
HVAC & Building Services
Cast iron butterfly valve bodies for chilled water, heating, and condenser circuits. The cast iron wafer butterfly valve format dominates this segment for its compact face-to-face dimension and low installed cost.
Chemical Processing
CF8M stainless steel and duplex steel butterfly valve casting bodies and discs for aggressive chemical service where cast iron’s corrosion resistance is insufficient.
Marine & Offshore
Super duplex, Monel, and bronze butterfly valve casting bodies for seawater cooling circuits, ballast systems, and offshore platform service.
Pulp & Paper / Mining
Ductile iron and cast steel iron butterfly valve bodies for slurry service, tailings lines, and large-bore isolation duty in mining and pulp mill applications.
Why Choose Invent Cast as Your Butterfly Valve Casting Manufacturer?
There are many casting manufacturers in India, but for valve casting manufacturing, Invent Cast delivers a combination of process depth, precision capability, and global supply reliability that sets us apart:
- Drawing-Based Manufacturing Every butterfly valve casting from cast iron wafer butterfly valve bodies to cast steel housings is produced strictly to your technical drawings. Bore roundness, disc geometry, and face-to-face tolerances are never approximated.
- Full Alloy Capability Under One Roof Cast iron, ductile iron, CF8M stainless, and super duplex all produced in our own foundry without outsourcing to sub-vendors.
- Robotic Shelling Technology Automated ceramic shell application ensures uniform thickness across thin disc sections and varying body walls the key to consistent bore roundness and disc profile accuracy across every batch.
- Integrated CNC Machining In-house machining of bores, shaft holes, flange faces, and lug threads one supplier, fully machined and assembly-ready.
- Production Scale Up to 150 tons per month and 1,800+ tons annually, supporting OEM programs from prototype through to full production volumes.
- Export-Ready Documentation Full MTC, COO, dimensional reports, and hydrostatic test certificates packaged to export standards for buyers in the USA, Europe, UK, Middle East, and Southeast Asia.
- Standards Compliance ASTM, ASME, API 609, DIN, EN, BS, JIS we understand what butterfly valve casting suppliers must deliver for international OEM qualification.
- Transparent Quality Reporting Heat-wise material traceability, complete inspection records, and test certificates with every shipment no exceptions.
