High-Precision Fire Safety Valve Castings Built to Perform
At Invent Cast, we specialize in manufacturing precision investment-cast fire safety valve components engineered to global performance and safety standards. Built for rapid response, leak-proof sealing, and long-term reliability — our castings ensure dependable operation in critical fire protection systems where safety, accuracy, and durability are non-negotiable.
- Serving clients across USA, Europe, and India with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
- Serving clients across USA, Europe, and India with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
- Serving clients across USA, Europe, and India with precision-engineered components.
- ✼
- Delivering high-tolerance metal parts with complex geometries and repeatable accuracy.
- ✼
- From prototyping to high-volume production, all under one roof.
- ✼
Manufacturing Process
We follow a precision-controlled casting process to ensure dimensional accuracy and high strength:
Advanced Pattern Design: Ensures consistent cavity geometry for precise valve function
Controlled Pouring: Minimizes porosity, shrinkage, and internal defects
Strengthening Heat Treatment: Enhances hardness, toughness, and structural integrity
Precision Machining: Achieves smooth sealing surfaces and tight tolerances for leak-proof operation
Rigorous Inspection: Dimensional, visual, and functional checks for safety-critical performance

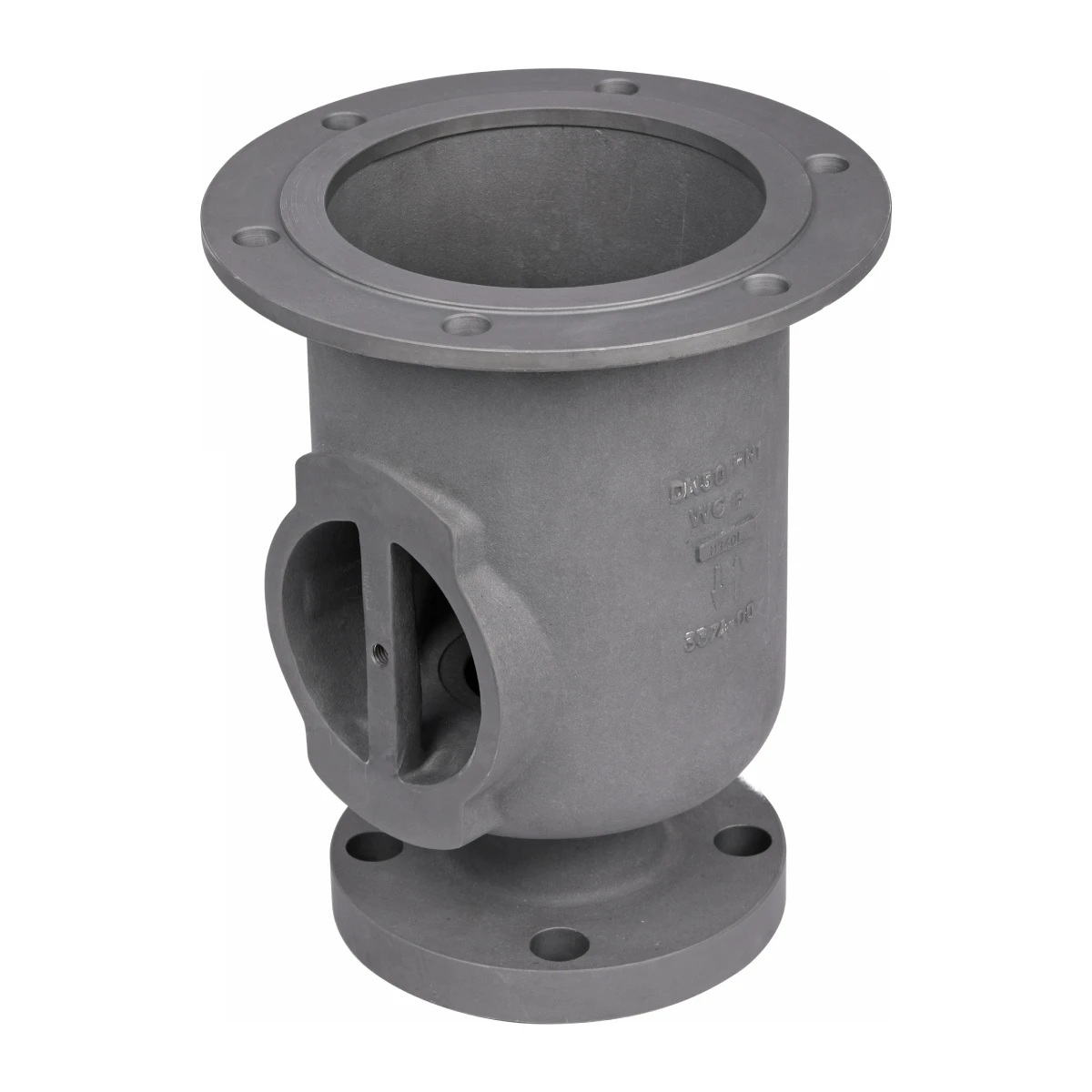

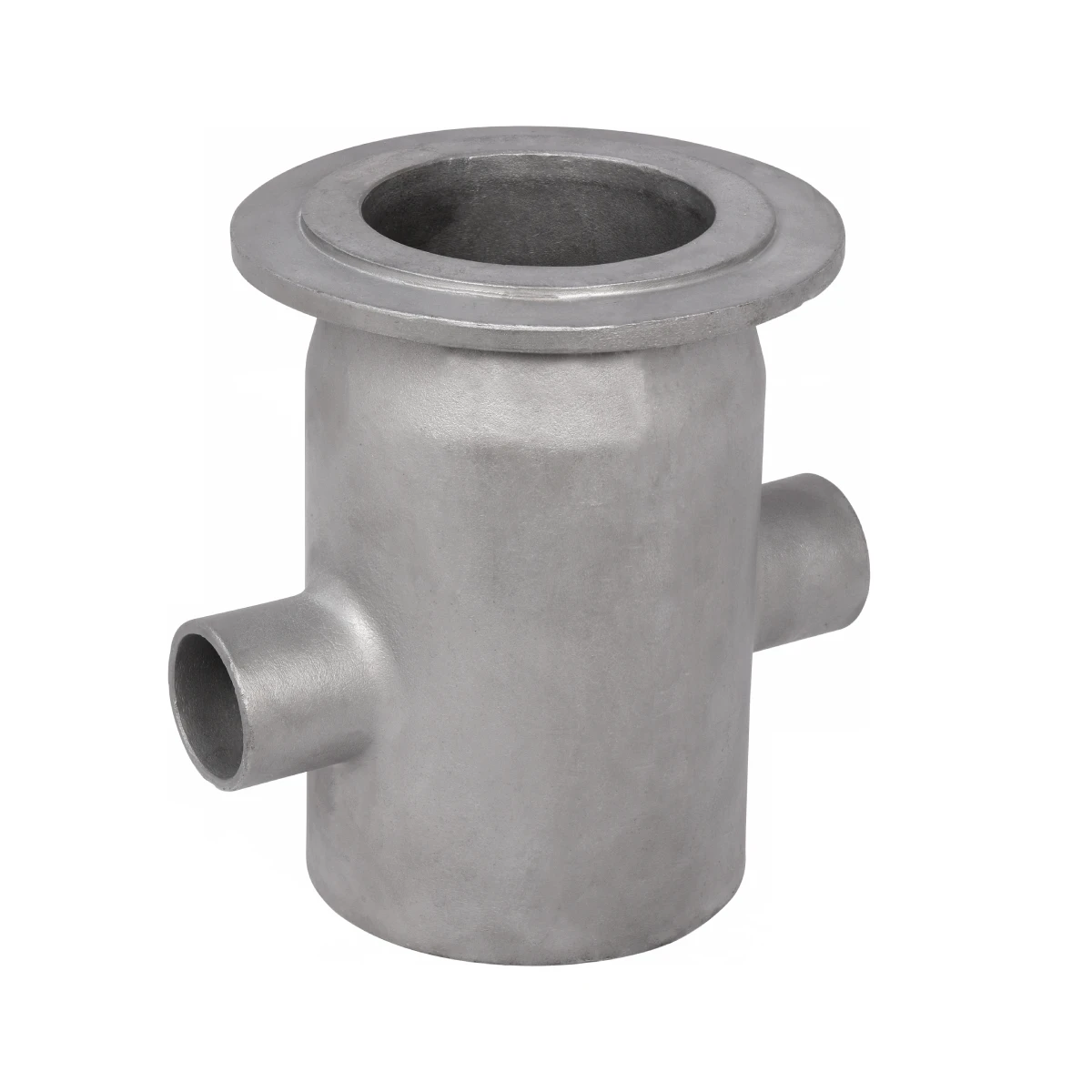

Our Fire Safety Valve Casting Range
| Fire Safety Valve Casting Technical Data | |
|---|---|
| R&D | Software: Solidworks, CAD, Procast, Pro-E, Flow Simulation |
| Lead Time for Development & Samples: 25–40 days | |
| Molten Metal | Stainless Steel: CF8, CF8M, Duplex, Super Duplex |
| Carbon Steel: WCB, LCB, Alloy Steel | |
| Alloys: Bronze, Nickel-base Alloy, Copper Alloy, Aluminium Alloy | |
| Metal Standard | ASTM, ASME, API, DIN, EN, BS, JIS |
| Material for Shell Building | Silica Sol (Precipitated Silica) |
| Water Glass (Sodium Silicate) | |
| Mixtures of Silica Sol and Water Glass | |
| Technical Parameter | Piece Weight: 0.5 kg to 150 kg |
| Max Dimension: 1,200 mm (Diameter or Length) | |
| Min Wall Thickness: 3–5 mm (depending on pressure class) | |
| Casting Surface Roughness: Ra 3.2–6.3 μm, Machined Surface Roughness: Ra 1.6 μm | |
| Tolerance of Casting: ISO 8062 CT6–CT8 | |
| Tolerance of Machining: ISO 2768-mk / IT6 | |
| Inner Core: Ceramic Core, Urea Core, Water-Soluble Wax Core | |
| Pressure Class | ANSI Class 150–600 (customizable) |
| Heat Treatment | Normalizing, Quenching & Tempering, Solution Annealing, Stress Relieving |
| Surface Treatment | Polishing, Sand/Shot Blasting, Electropolishing, Pickling & Passivation, Epoxy Coating, PTFE Coating, Anodizing |
| Dimension Testing | CMM, Vernier Caliper, Depth Gauge, Height Gauge, Go/No-Go Gauge, Special Fixtures |
| Chemical Inspection | Chemical Composition Analysis (20+ elements), X-ray Radiography, Cleanliness Inspection, Carbon-Sulfur Analysis |
| Physical Inspection | Hardness, Yield Strength, Tensile Strength, Elongation, Impact Testing, Dynamic & Static Balancing, Microstructure Analysis |
| Testing & Compliance | Hydrostatic Testing, Air Tightness, Disc & Seat Function Testing, Backflow Prevention Verification, API/ISO Compliance, Fugitive Emission Testing (if applicable) |
| Production Capacity | Up to 120 tons/month, over 1,400 tons annually |
| Applications | Fire Safety Systems, Oil & Gas, Chemical Processing, Water & Wastewater, Marine Industries, HVAC Systems |
Testing & Compliance
We ensure every wafer type non-return valve casting meets global quality, performance, and safety standards through rigorous testing:
Dimensional Accuracy: CMM, calipers, and gauges for precise body, disc, and seat alignment
Integrity & Defect Inspection: Dye Penetrant, Magnetic Particle, and X-ray tests for surface and internal flaws
Mechanical & Metallurgical Analysis: Hardness, tensile strength, yield strength, elongation, and microstructure evaluation
Operational & Functional Testing: Disc operation, backflow prevention, hydrostatic and air tightness tests
Corrosion & Surface Evaluation: Coating adhesion, passivation, and optional salt spray resistance testing
Standards Compliance: API 609 / 598, ASTM, ASME, DIN, EN, BS, JIS
